Acoustic covers dumbledore Shear Brilliance SB6 Finn Power
Turret hydraulic punching machine, 30 tons
Shear angular integrated RS 1000 x 1500 mm
Movement X/Y axis with the aid linear motors
3 programmable grippers
Siemens 840D CNC
LD 3000 load
Sheet metal squaring table
Double sheet tastatore
Lubrication tools
Swarf conveyor SC1 & SC2
Shear 800 x 1500
Control interspace automatic blades
Swarf conveyor RSC1 & RSC2
Tapes exhaust conveyors C1500/4
An exhaust device STS3015
Double unloading table
TECHNICAL MACHINERY

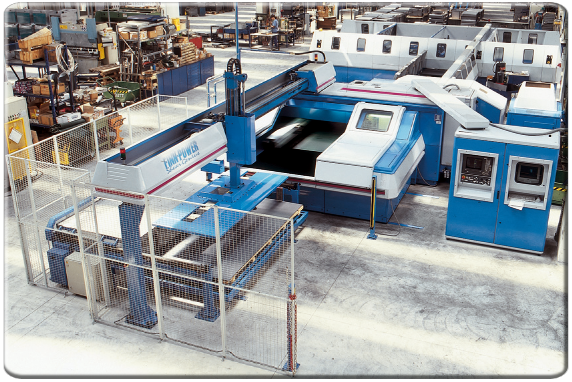

Finn-Power TRS6-STS3015 Machine Year Built 1999 CE Mark PowerLink station CNC Control Fanuc 16PB CAD \ CAM included Very good condition
Number of turret stations: 20 Punch max diameter: 89mm Max thickness of the material (punching): 8mm angular Shear: - material thickness max (shearing) Aluminum: 5mm Steel Fe52\Fe37: 4mm
Stainless steel: 3mm - setting gap shears: Automatic
Loading units LD3000 centering sheet table double sheet Tastatore deformation System Upforming exhaust unit STS3015 Double unloading table
